Ventilation, Trim, and Final Details

Dial in the finishing touches that keep your shed dry, durable, and clean‑looking. This page covers vent choices, exterior trim, paint/caulk, hardware tune‑ups, and a final walk‑through so doors and windows work smoothly.

Outcome: Balanced airflow, crisp trim lines, sealed penetrations, and hardware adjusted so everything opens and closes right.

What You’ll Learn

* Choose and place vents for reliable airflow
* Install exterior trim and fascia with straight reveals
* Seal, prime, and paint for longevity
* Tune hinges, hasps, and latches so they operate smoothly

Time: Half day to one day, depending on size and weather.

Tools: Drill/driver, nailer or hammer, caulk gun, utility knife, snips, paint/primer gear, putty knife, PPE.

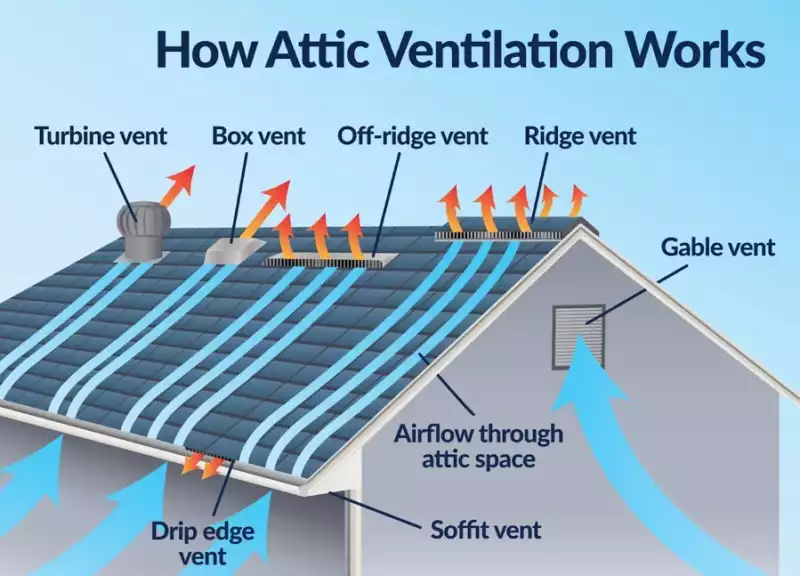

roof ventilation

Venting Options (Balance Intake and Exhaust)

* Ridge + soffit (gable): Soffit vents low for intake, ridge vent high for exhaust.

* High‑wall vent (lean‑to/modern): Intake low at eave, exhaust at the tall wall or ridge line.

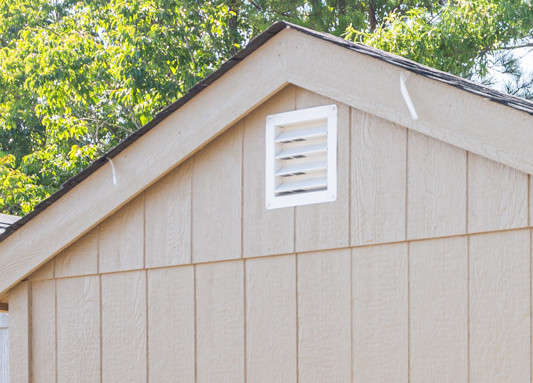

* Gable vents: Simple for small sheds without soffits; pair with low intake.

Placement tips

* Keep insulation clear of intake vents.

* Use insect‑screened vents sized per manufacturer.

*Even spacing looks better and works better.

Exterior Trim and Fascia

Check straight lines
Sight sub‑fascia; plane or shim before installing the finish fascia.

Install trim
Casings around doors and windows, corner boards, and skirt/fascia trims per your plan.

Head flashings
Slip head flashings under the WRB head flap and extend past jambs.

Reveal consistency
the Keep equal reveals around openings and at corners; use a spacer block for repeatable gaps.

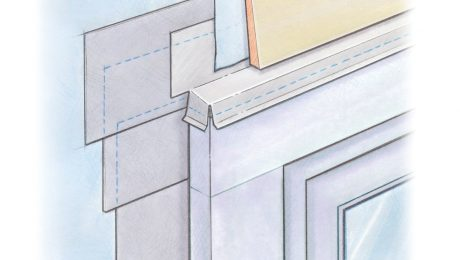

Weather Details for Doors

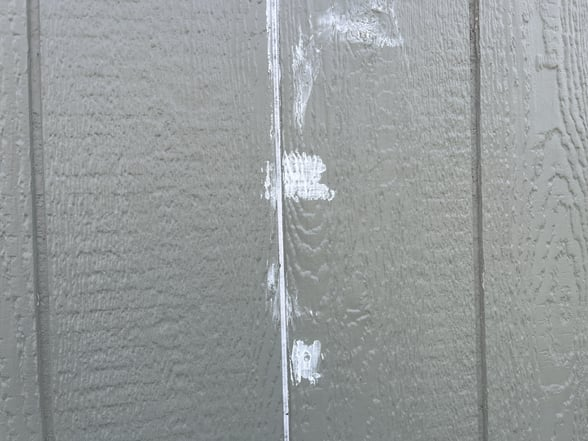

Caulking Siding

Seal, Prime, and Paint

Sealants: Use high‑quality exterior sealant where trim meets siding; don’t seal weep paths.

Priming: Prime cut ends and any raw edges before painting.

Paint: Two finish coats per manufacturer; follow dry times and weather windows.

hinges

Hardware Tune‑Up

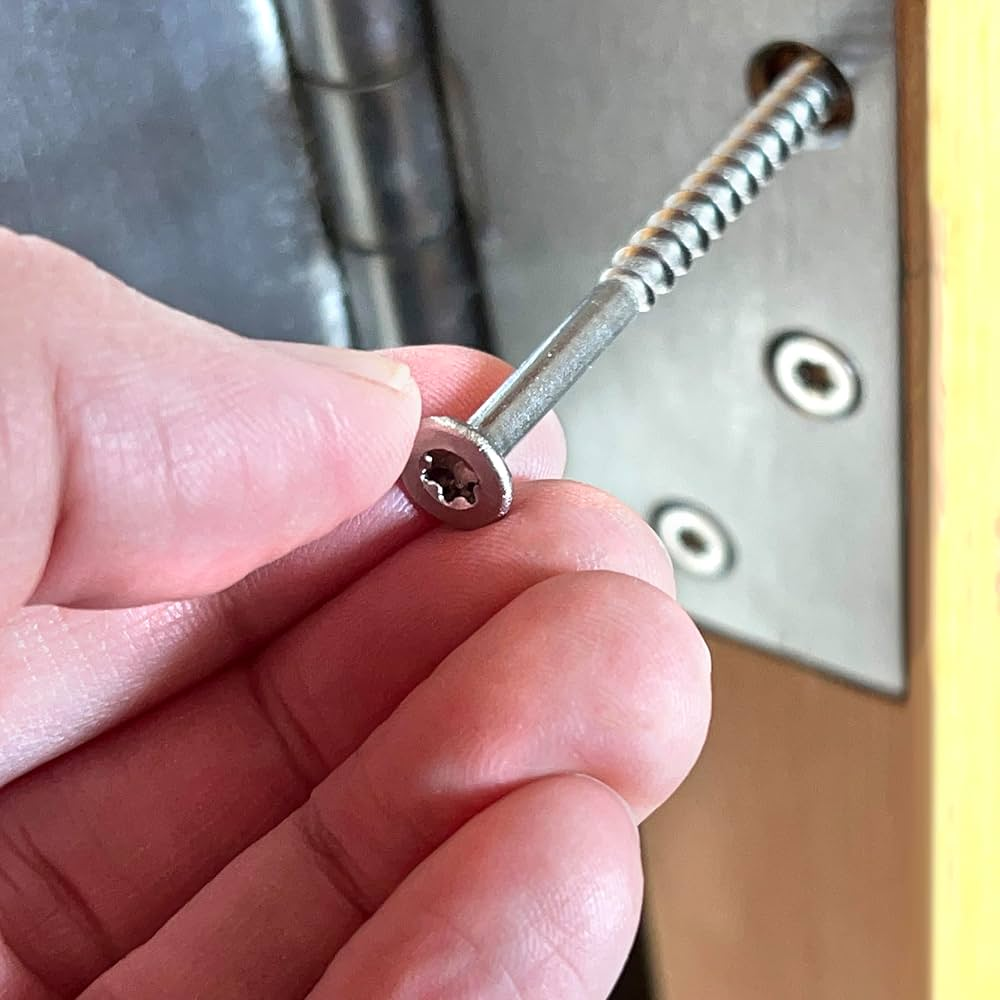

Hinges: Add a long screw at the top hinge into the stud to prevent sag. Tighten all hardware.

Latch/hasp: Align for smooth close; adjust strike/keeper as needed.

Weather strips: Add or replace threshold and jamb seals where appropriate.

Penetrations and Accessories

Lights/vents: Use compatible flashing boots or plates.

Conduit/cable: Seal with exterior‑rated grommets and sealant.

Shelving hooks/ledger strips: Pre‑drill into studs; avoid over‑tightening.

Detail prompt (vent boot): “A small diagram of a wall vent with a flexible boot and sealant bead at the siding interface, labeled components, white background.”

vent
check list

Final Walk‑Through Checklist

Vents installed, clear, and screened

Trim straight with even reveals; head flashings tucked correctly

All penetrations flashed/sealed

Paint/caulk complete; raw edges primed

Doors and windows swing freely; latches align

Site cleaned up; offcuts and fasteners removed

Materials (Finish Stage)

Vents (ridge, soffit, gable, or high‑wall), head flashings

Trim boards for corners, casings, skirt/fascia

Exterior‑rated sealant and caulk backer as needed

Exterior primer and paint

Hardware screws, long hinge screws, latches/hasps

Your plan set includes over 25 pages of detailed drawings and instructions plus a material list and tool list to match sizes and hardware.
