8×12 Gambrel Barn Shed Plan, End Door (PDF)

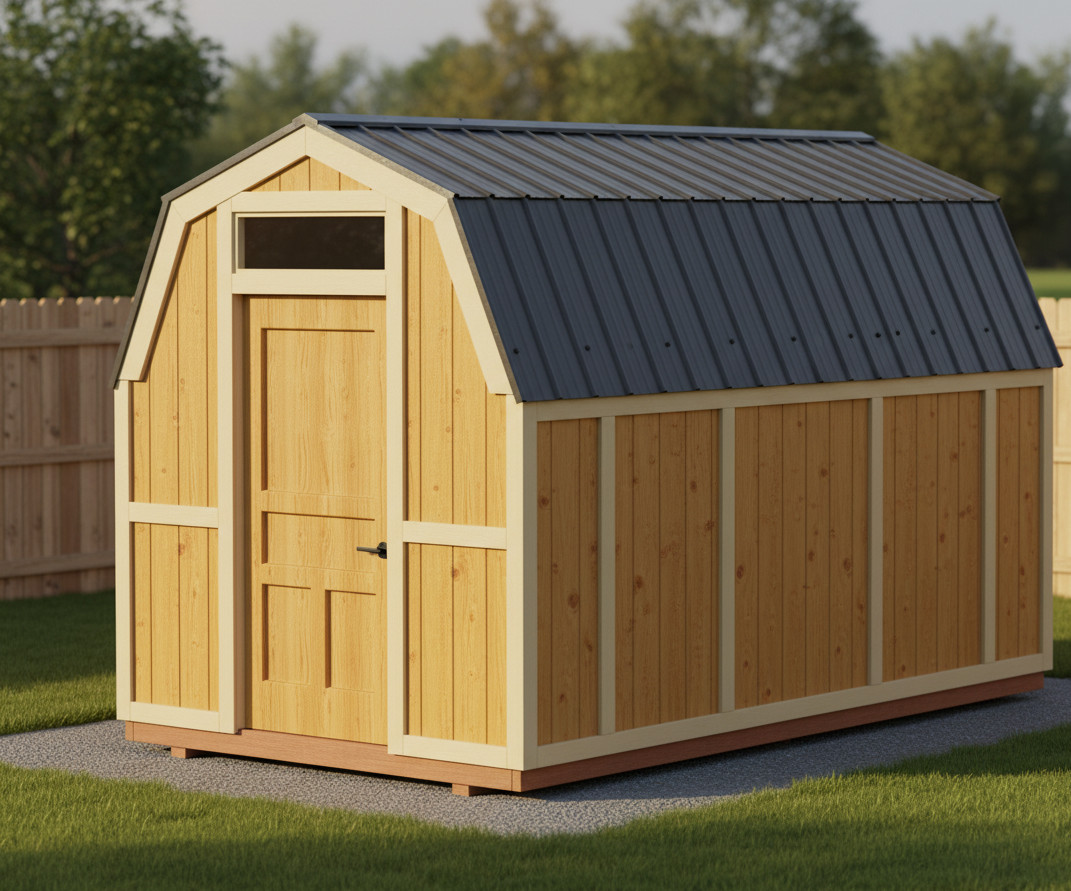

What you’ll build

An 8×12 barn-style storage shed with a gambrel roof and a centered end door. The interior gives you a full 96 sq ft footprint with headroom shaped by the gambrel profile, ideal for lawn equipment, bikes, or a small workshop.

What’s inside the plan

You get step-by-step sheets that cover elevations, floor and wall framing, roof trusses, templates, roofing, trim, door details, cross-section, and a complete materials list. The title page lists every included sheet from the cover through DIY door framing, giving you a clear roadmap for construction (pages 100–132).
Framing uses 16-inch on-center layout, five-foot sidewalls, and T1-11 or similar siding. You’ll also see options for storage shelves, pre-hung or DIY doors, and asphalt shingles, plus tool, material, and cut lists.
Dedicated sheets walk through building and installing gambrel, end, and lookout trusses, plus templates for accurate angles.

Why 8×12 works

The 8×12 footprint fits most yards and many permit thresholds, while the gambrel roof adds usable headspace for tall tools and overhead storage. End-door access keeps the floor plan simple, which speeds up framing and trim.

Skill level and tools

Designed for capable beginners and intermediate builders. Standard circular saw, drill-driver, framing square, level, and a sliding T-bevel for truss angles. Truss templates and gusset guidance are included for repeatable accuracy.

What you’ll receive

A printable PDF download with over thirty pages of dimensioned drawings, notes, and lists. Start at the title page for a quick overview, then follow the sequence for a smooth build.

---

Key features (high-impact bullets)

• Classic gambrel roof for extra headroom, with measured truss sheets and templates.

• 16-inch on-center framing, material and cut lists included.

• Five-foot sidewalls and about ten feet three inches overall height for easy storage of tall items.

• Siding shown as T1-11, works with similar panel siding.

• Door options: 3-ft pre-hung or DIY double-door, with rough opening and build details.

• Storage shelves and trim layout sheets to finish cleanly.

---

Specifications

• Plan type: Digital PDF, printable

• Footprint: 8 ft × 12 ft, 96 sq ft

• Wall height: approx. 5 ft sidewalls, gambrel profile above

• Overall height: about 10 ft 3 in

• Framing: 2× lumber, 16 in on center

• Siding: T1-11 or equivalent panel

• Roofing: asphalt shingles, roof sheathing pages included

• Door: end-door layout, RO for DIY build is about 6′ 9½″ × 3′ 9″, header not needed on end walls per sheet notes

• Included lists: tools, materials, and cuts

---

What the sheets covers

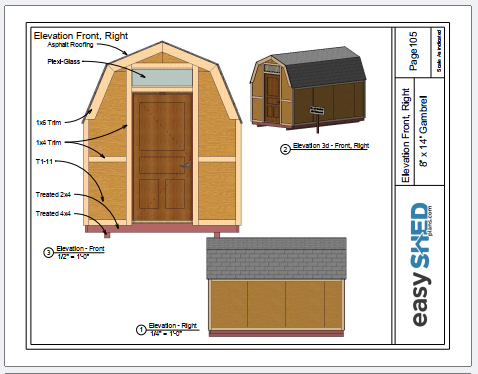

• Elevations, floor, wall, and sheathing instructions, plus truss layout and roofing sequence.

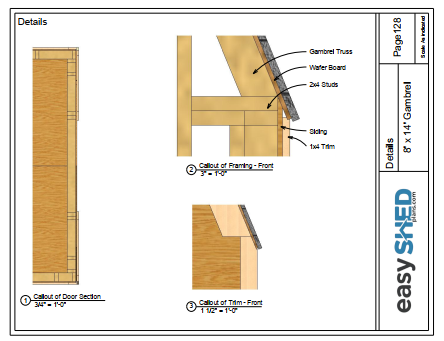

• Trim, door details, cross section, 3D framing, and gusset layout.

• A dedicated site-prep sheet is part of the set, so you can start on a level, well-drained base.

---

What you’ll need on site

Crushed-stone pad or similar level base, basic carpentry tools, and common fasteners. The plan sequence explains squaring, layout, and safe work practices so your walls and roof go together cleanly.

---
