10×16 Gable “Dog Shed / Porch” — PDF Plan

10×16 Gable “Dog Shed / Porch” — Highlights & Specs

• Size / Sq Ft: 10×16 — 160 sq ft

  • Style: Gable roof with front porch/overhang—great for a kennel, mower parking, or mud-free entry

  • Wall height options: 6-ft or 8-ft versions included

  • Doors/Windows: DIY single or double door layout; optional windows shown

  • Framing: 16″ O.C. walls; simple pre-fab truss templates included

  • Siding/Roofing: Works with T1-11 or lap siding; asphalt shingles or metal roofing

  • Skill level: Confident beginner to intermediate

  • Plan format: Downloadable PDF, over 25 pages of detailed drawings and instructions

  Top Facts

  • 10×16 (160 sq ft), Gable w/ Porch

  • Wall height: 6-ft & ~8-ft versions

  • Doors: single or double; optional windows

  • Truss templates included

  • Material list and tool list included

  • PDF: 25+ pages with step-by-step diagrams

  • Permits: 160 sq ft often requires a permit — check local rules

  Foundation / Site Prep

  Works with compacted gravel pad and pressure-treated skid system, deck-style post/beam, or a full slab. The plan shows typical footprints and anchor ideas—choose the method that best fits your soil, frost depth, and code.

  Truss Package & Templates

  You get full-size truss templates for consistent cuts and easy assembly. The gable system is designed to be repeatable, allowing framing to proceed quickly and ensuring that the roof planes align cleanly.

  What You Receive (PDF)

  • Over 25 pages of step-by-step diagrams and notes

  • Material list and tool list

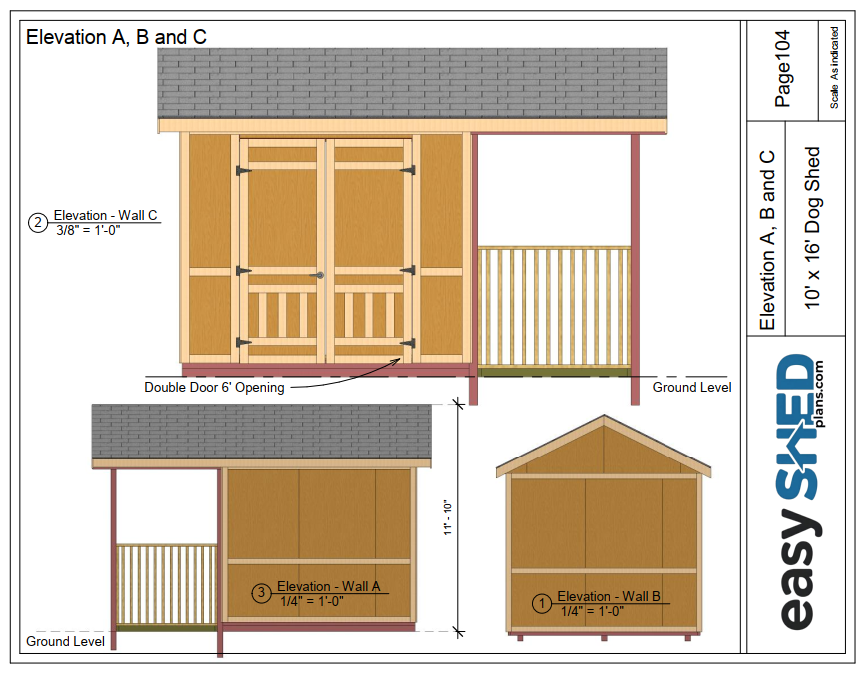

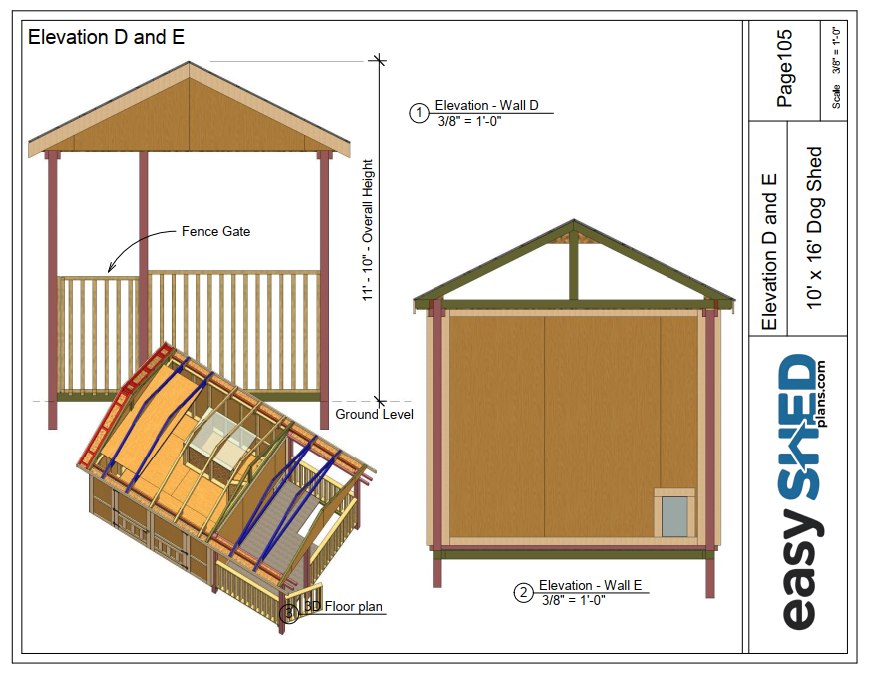

  • Framing plans, elevations, and section details

  • Door options, porch framing, and trim details

  • Printable truss templates

  Why This Size & Style Works

  10×16 gives you a roomy 160 sq ft for lawn gear, bikes, and project space. The small porch keeps the threshold dry and doubles as a tidy kennel/run entry. The gable form is classic, budget-friendly, and easy to roof.

  Quick Answers

  Are these plans permit-friendly?

  Many areas allow small accessory buildings with simplified permits. Always check local rules for size limits and setbacks.

  What do I receive after purchase?

  A downloadable PDF with over 25 pages of detailed drawings and step-by-step notes, plus a material list and tool list.

  Do the plans include roof details and truss templates?

  Yes. You get roof framing details and printable truss templates for accurate layout and assembly.

  Can a first-time DIYer follow these plans?

  Yes. The drawings are annotated and arranged in build order so most DIYers can follow along.

  Can I move doors or windows?

  Yes. You can mirror the layout or shift openings while keeping the framing logic the same.

  What foundation options are covered?

  Common options such as a gravel pad with skids or a framed platform are discussed so you can match site and code.

  What materials are the plans designed around?

  Standard, readily available lumber and sheathing so you can price and source locally.

  How do I estimate total cost?

  Use the material list to request quotes from local suppliers. Prices vary by region and season.

  Can I print the plans at home?

  Yes. The PDF is sized for home or shop printing. You can also print selected pages at a copy shop.

  Do you offer different wall heights or variations?

  Many plans include options or notes for alternate wall heights or configurations. See the product details for any plan-specific notes.
