Rafters, Trusses, and Fascia

Quick answers to the questions we hear most—from permits and foundations to what’s included with the download. Each answer links to the right part of the guide so you can go deeper fast.

Note: All plan PDFs include over 25 pages of detailed drawings and instructions plus a material list and tool list.

General

Are these plans permit‑friendly?
Many areas allow small accessory buildings with simplified rules at or below 120 sq ft, but cities vary. Always check local setbacks, height limits, and HOA rules. Start at Planning, Codes, and Site Prep for a plain‑English checklist.

How long does a shed take to build?
Most DIY builds finish in 2–6 weekends, depending on size, crew, and weather. See the Guide Hub timeline for a typical sequence.

What’s included with the download?
A printable PDF with over 25 pages of step‑by‑step drawings and notes, plus a material list and tool list. You’ll also see truss templates where applicable (e.g., gambrel).

Do I need special tools?
No specialized tools are required for most builds. A circular saw, drill/driver, impact driver, speed square, levels, layout string, and a framing nailer (or hammer) cover it. See What You’ll Need on the Guide Hub.

10×12 tall gable shed — end door (pdf plan)

Size, Style, and Layout

Which shed size should I choose?
Pick by what you’ll store and local limits. Popular sizes include 8×10, 8×12, 10×12, 10×16, 12×12, 12×16. Visit Sizes and Styles to preview fit.

What’s the difference between Gable, Garden (side‑entry), Lean‑To, Gambrel, and Modern?
* Gable: Classic, easy framing
* Garden (side‑entry): Door on the long wall for flexible interior layout
* Lean‑To: Simple single slope; great near fences
* Gambrel: Barn look with extra headroom; uses truss templates
* Office/Studio/Modern: Clean lines; higher front wall options. See Roof, Choose Your Style for a quick comparison and pitch tips.

Can I add windows or move the door?
Yes—plan for rough openings in Wall Framing and confirm header sizes. The Doors and Windows page shows how to flash new openings correctly.

Site Prep and Foundations

What’s the easiest foundation?
Skids on compacted gravel are the fastest and most DIY‑friendly on level ground. For slopes or deep frost, concrete piers work well. For rolling loads (ATV, mower), a slab is convenient. See Foundations That Work.

How do I know the site is square and level?
Stake strings, use the 3‑4‑5 method to square, check diagonals, then set elevation with a line level or laser. See Planning, Codes, and Site Prep.

Can I build on a slab?
Yes. The plans show wall anchoring options. See Foundations That Work → Slab on Grade.

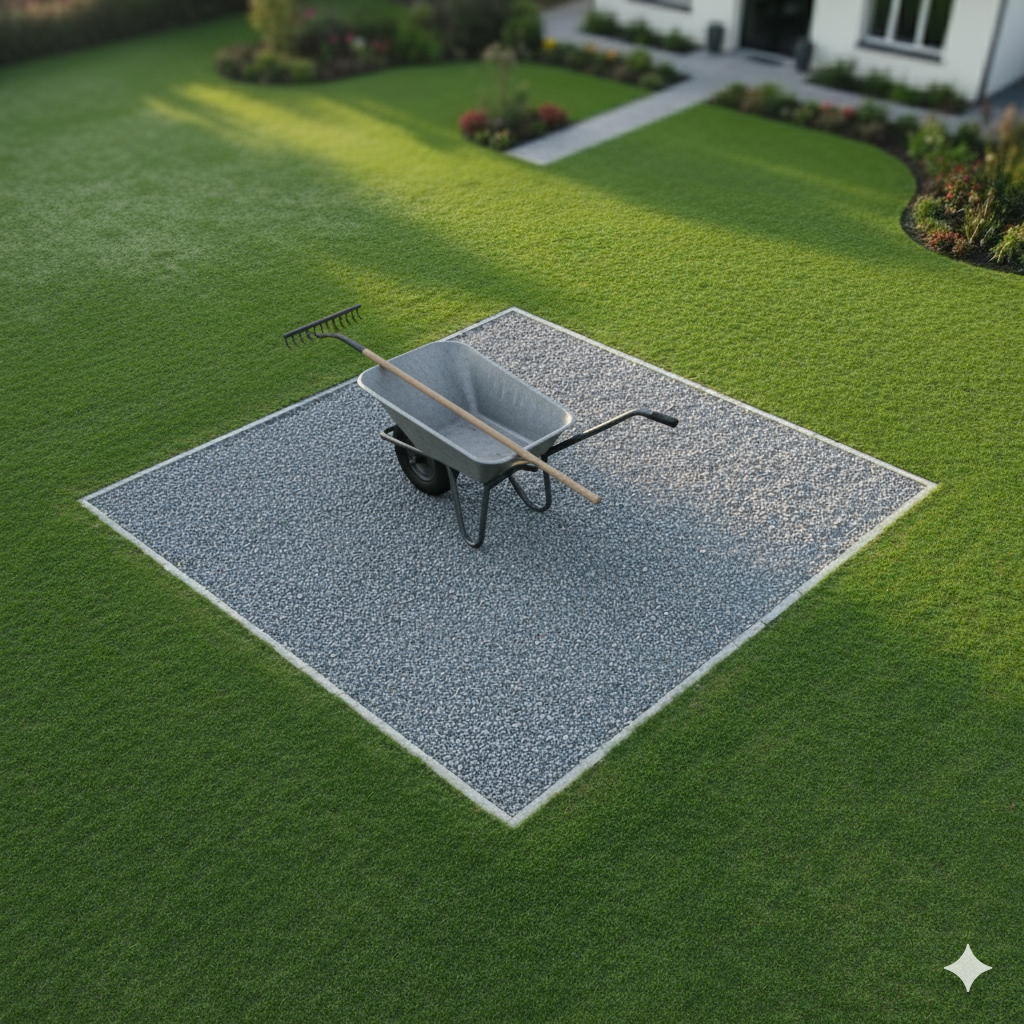

Prep site

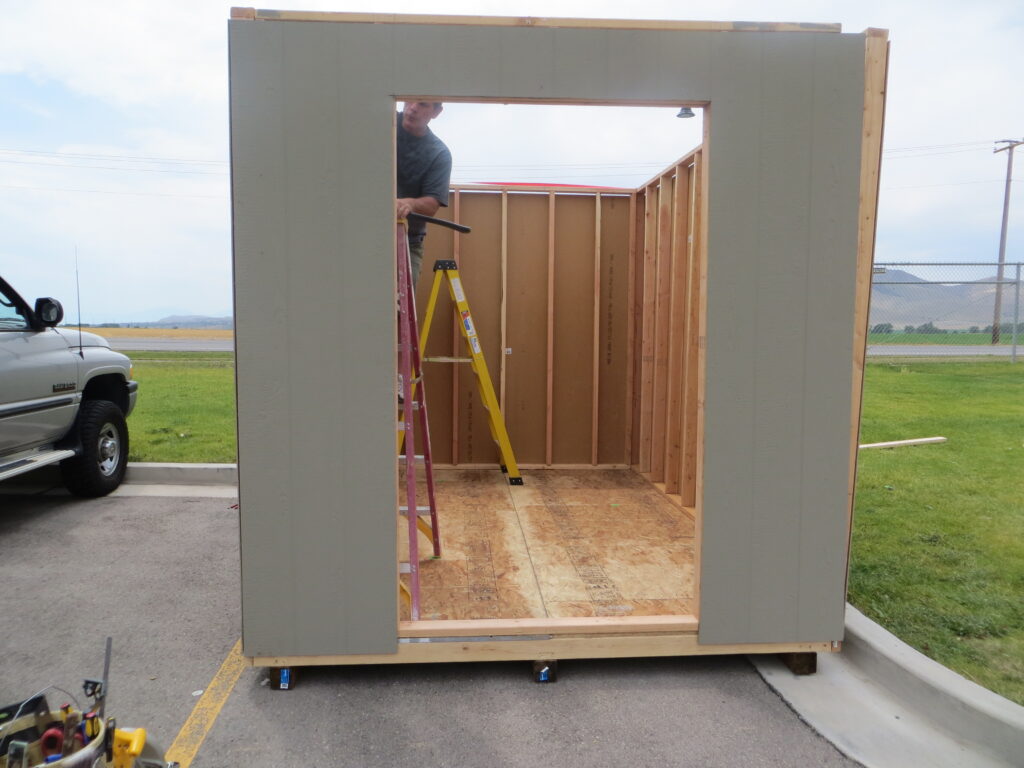

Shed easyshedplans.com

Framing, Siding, and Roofing

What joist spacing should I use for the floor?
Most plans specify 16 in O.C. floor joists; confirm in your plan’s framing pages. See Floor Framing and Sheathing.

Should I sheath walls before or after standing them?
Both work. Panelize on the deck for speed (heavier lift), or stand then sheath for easier plumbing. See Wall Framing.

What siding can I use?
Panel siding installs quickly; lap siding goes over a WRB. Follow manufacturer fastener schedules and keep 1/8 in panel gaps. See Siding and Weather‑Resistive Details.

Shingles or metal roof?
Either works. Shingles are common and straightforward; metal is durable and sheds snow well. See Roof Sheathing and Roofing for both paths.

roof vent type

Weatherproofing and Venting

How do I flash windows and doors correctly?
Use the shingle principle: sill pan/tape first, then jambs, then head flashing tucked under the WRB head flap. See Doors and Windows.

What’s the best way to vent a shed?
On gable roofs, ridge + soffit gives balanced airflow. On lean‑to/modern, use low intake and a high‑wall or ridge exhaust. See Ventilation, Trim, and Final Details.

Finishes, Hardware, and Upgrades

When should I paint?
Prime cut ends as you build. After siding and trim are up and dry, apply two finish coats within the manufacturer’s weather window. See Ventilation, Trim, and Final Details.

How do I stop a door from sagging or rubbing?
Drive a long screw through the top hinge into the stud, then adjust shims and latch alignment. See Doors and Windows and Troubleshooting.

Can I insulate the shed later?
Yes. If you plan to insulate, add venting now and use a WRB behind lap siding. Interior insulation details vary by climate.

painting
8×12 saltbox shed plan, 6′ walls, 10′ 4″ height — pdf

Problem‑Solving

My walls are plumb but the door still sticks—what now?
Re‑check square at the floor and wall, verify the rough opening is square, and tune hinges/latch. See Troubleshooting and Pro Tips.

The roof line waves—how do I fix it?
Plane high rafter tails and reset the sub‑fascia to a snapped line before roofing. See Rafters, Trusses, and Fascia.
